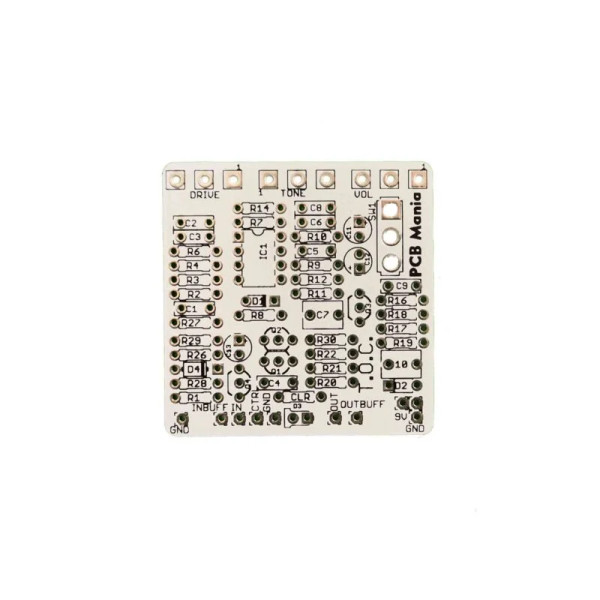

Project overview

Self-claimed as the first overdrive featuring hard mosfet clipping, the OCD has been for sure and standard for everyone in love with gain and singing guitar leads. We covered all 4 classic versions of the OCD in this board, plus the JHS mods and our own version!

Like always, you can do some experimentation and come with your own version of this iconic drive.

Introduction

The OCD is a pedal Mike Fuller, initially build for himself. His thought was that other overdrive pedals manufactured at this time just keep pronouncing things amps already deliver. He was looking for a circuit that adds JTM45 like overtones to any setup allowing you to crank the volume to create singing leads

from every amplifier.

Over the years, he did plenty of versions, so we matched the PCB and the documents to give you the option to build one of four versions.

If your amp already delivers quite some high-end, I recommend building V3. Got more gain on top but a tone control that adds less high-end (this could sound a little harsh and is one of the biggest complaints some guys have with the circuit). Also you can experiment moding the key highlighted values and design your own version!

In this model, we have also included the possibility to add toggles that enable-disable the input and output buffers individually. When you are sure that you want the buffers always “on” or “off, “you can leave the toggles out. Using in and out for no buffer and buffer in and out for buffers. You also can mix that up or experiment with different combinations. I recommend alligator clips for that or a test box.
