Product Overview
From the manufacturer:
Fuzz Dog Mini Bad Mofo
Some special lovin' for all you low-end dirt junkies. The Bad Mofo bass overdrive preamp.
DRIVE and LEVEL pots give you control over the amount of dirt and volume. TREBLE is a low pass filter to cut your top end for just the right amount of fizz. Nothing groundbreaking there, but wait....
We have a four-way rotary switch to give you four completely different sounds. Silicon, Germanium and LED clipping are available, as well as clipping bypass for extra crunch and minimal clipping.
Top off those goodies with a very effective buffered BLEND control to dial in as much dry signal as you like.
The only bass dirtbox you need? Maybe. Be sure to take the path of the righteous.
The kit is supplied with vertical-mount pots which have round shafts, so you'll need set-screw fitting knobs.

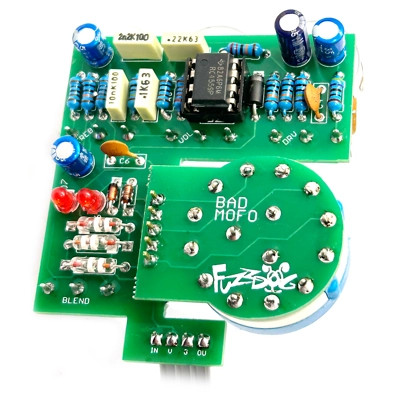

No longer particularly fiddly - we've updated the kit with a separate daughterboard to mount the rotary switch. When using header pins it sits exactly in line with the pots. Happy days. No longer supplied with the JRC4562 op-amp as they're simply not available. 4559 supplied instead, and sounds identical.
